Custom Stainless Steel Reactors Stainless Steel Jacketed Reactors 316L/304 Stainless Steel Construction Internal Surface Polished Finish Suitable for

Name: Custom Stainless Steel Reactors Stainless Steel Jacketed Reactors 316L304 Stainless Steel Construction Internal Surface Polished Finish Suitable for
Brand: WeSeW
Price: 1 USD

Wholesale Custom Stainless Steel Reactors Stainless Steel Jacketed Reactors 316L/304 Stainless Steel Construction Internal Surface Polished Finish Suitable for from china suppliers

Brand Name : WeSeW

Model Number : RG-717

Certification : CE,UL

Place of Origin : China

MOQ : 1 pc

Price : Price Negotiation

Payment Terms : T/T,Western Union

Supply Ability : 1000000pcs per month

Delivery Time : 10-20 working day

Packaging Details : Wooden Case

Rotation Direction : Clockwise/Counterclockwise

Screw Type : Helicoid or sectional

Strength : High tensile strength

Usage : Conveyor

Inclination Angle : 0-45 degrees

Features : Flexible design, easy to clean

Contact Now

Custom Stainless Steel Reactors Stainless Steel Jacketed Reactors 316L/304 Stainless Steel Construction Internal Surface Polished Finish Suitable for Pharmaceutical and Chemical Industries

type

Tank Reactor

voltage

220V/380V/415V/440V

capacity

100 L, 200 L, 1000 L

automatic grade

Semi-Automatic

power(w)

0.15~75kw

Weight (KG)

1500

dimension(l*w*h)

According to Capacity

Product name

ODM stainless steel steam jacketed tank reactor

Material

Stainless Stee 304 316

Capacity

100L-20T

Agitator

Paddle, frame, anchor, turbine, screw type

Inner vessel Op. Pressure

≤0.5MPa

Jacket Op. Pressure

≤0.5MPa

Heating Area

2~20m2

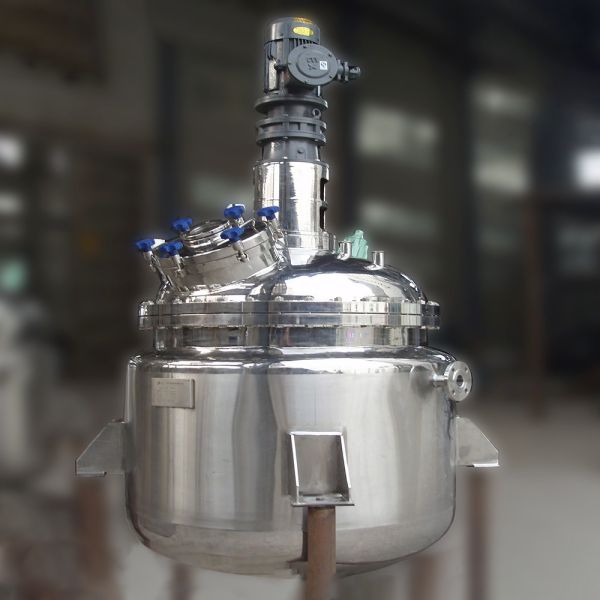

ODM Stainless Steel Steam Jacketed Tank Reactor

_{Product Application}

The ODM Stainless Steel Steam Jacketed Tank Reactor is one of the reaction equipment commonly used in medicine, chemical industry, etc. It is a kind of equipment that mixes two kinds (or more kinds) of liquids and solids of certain volume and promotes their chemical reaction by using the mixer under certain temperature and pressure. It is often accompanied by heat effect. The heat exchanger is used to input the heat required or move the heat produced out. The mixing forms include multi-purpose anchor type or frame type, so as to ensure even mixing of materials within a short period of time.

The mixing rotation speed adopts variable frequency speed adjustment. It is provided with temperature display or control.

To ensure that the material can be in the condition of asepsis, it is designed to be completely closed. The end plate cover (taper shape) has adopted rotating-pressure machining, according with GMP.

Main Parameters

Model	WJG 300	WJG 400	WJG 500	WJG 600	WJG 1000	WJG 2000	WJG 3000	WJG 5000
Volume (L)	300	400	500	600	1000	2000	3000	5000
Vessel Op. Pre. (MPa)	≤0.2
Jacket Op. Pre. (MPa)	≤0.3
Motor Power (Kw)	0.55	0.55	0.75	0.75	1.1	1.5	1.5	2.5
Stirring Speed (r/m)	36~53
Diameter (mm)	900	1000	1150	1150	1400	1500	1700	2000
Height (mm)	1800	1900	2200	2300	2600	2900	3200	3700
Heat Exchanging Area (m2)	2	2.4	2.7	3.1	4.5	7.5	8.6	10.4

Main Features

1) It adopts stainless steel 316L or 304, internal surface mechanical polishing, external wall adopt 304 full-steel welding structure insulation, external surface adopt mirror or matte treatment.

2) Jacket Type: adopt full jacket, semi-coil jacket, or dimple jacket

3) Insulation: adopt aluminum silicate, polyurethane, pearl wool, or rock wool.

4) Agitation System: adopt top centre-entry agitator or side-entry agitator.

Agitator Type: frame, anchor, paddle, turbine, propeller, etc.

Agitation Speed: 10~120r/min, or frequency speed.

5) Liquid Level Gauge: tubular glass level meter, or ball float type level meter.

6) Equipment Accessories: quick-open manhole, sight glass, inspection light, thermometer, sample nozzle, air breathing apparatus, CIP cleaning system, cleaning ball, liquid inlet/outlet nozzle, spare nozzle, cooling/hot solvent inlet/outlet nozzle

7) Vessel sterizing: online steam sterilizing (121℃)

8)Can be customized according to customers requirement and product processing.

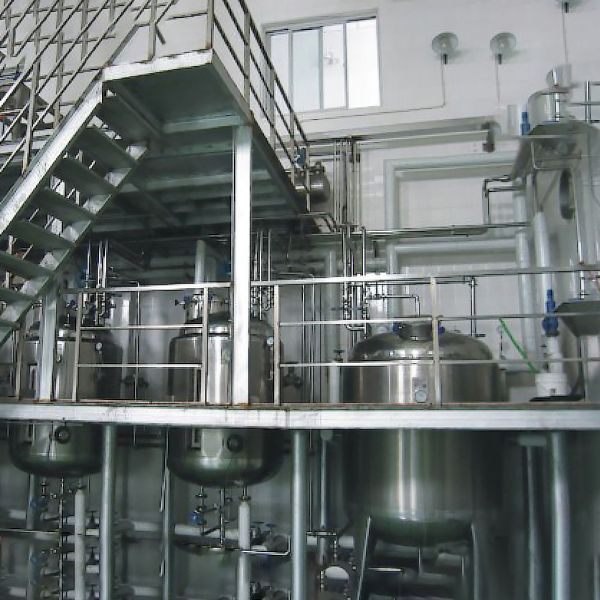

The whole reaction equipment can be equipped with condenser, condensate receiver, circulation pump, pipes, etc, accodring to customer's requirement and technology product processing.

The tank body can be equipped with the CIP automatic rotary spray cleaning ball, thermometer, manhole, pressure gauge, explosion-proof inspection light, sight glass, quick open type feeding inlet and etc, ensuring convenient operation.
